Transparent electronic screen, transparent LCD screen, LED flexible transparent screen is also an electronic product, and it is a display product in electronic products, so what signals will be used in the design of transparent screen?
1. CLK clock signal: The shift pulse provided to the shift register, each pulse will cause data to be shifted in or out one bit. The data on the data port must be coordinated with the clock signal to transmit data normally, and the frequency of the data signal must be the clock signal. 1/2 times the frequency. In any case, when the clock signal No. 1 is abnormal, it will make the whole board display messy.
2. STB latch signal: send the data in the shift register to the latch, and display the data content through the drive circuit to light up the LED. However, since the drive circuit is controlled by the EN enable signal, the premise of its lighting must be to enable the open state. The latch signal also needs to be coordinated with the clock signal to display a complete image. In any case, when there is an abnormality in the latch signal, the display of the board will be disorganized.
3. EN enable signal: the whole screen brightness control signal, also used for display screen blanking. Just adjust its duty cycle to control the change in brightness. When the enable signal is abnormal, the whole screen will appear dark, dark or trailing.
4. Data signal: Provide the data needed to display the image. It must be coordinated with the clock signal to transmit data to any one of the display points. Generally, the data signals of red, green and blue are separated in the display screen. If a data signal is short-circuited to the positive or negative pole, the corresponding color will appear full on or off. When the data signal is empty, the corresponding color will appear. Display is uncertain. The current LED flexible transparent screen adopts the analog signal transmission method, and the digital model needs to be converted into an analog signal to be recognized on the screen body.
5. ABCD line signal: It only exists when the dynamic scanning is sensitive. ABCD is actually a binary number, and A is the low bit. If the ABCD signal is expressed in binary, the control address is 16 lines (1111), and only in 1/4 scanning The AB signal is fine because the representation range of the AB signal is 4 lines (11). When the line control signal is abnormal, there will be display dislocation, highlight or image overlap. Generally, the transparent LED display with larger spacing is static, and some with small spacing are scanned. For example, JTS3 uses 16 scans.

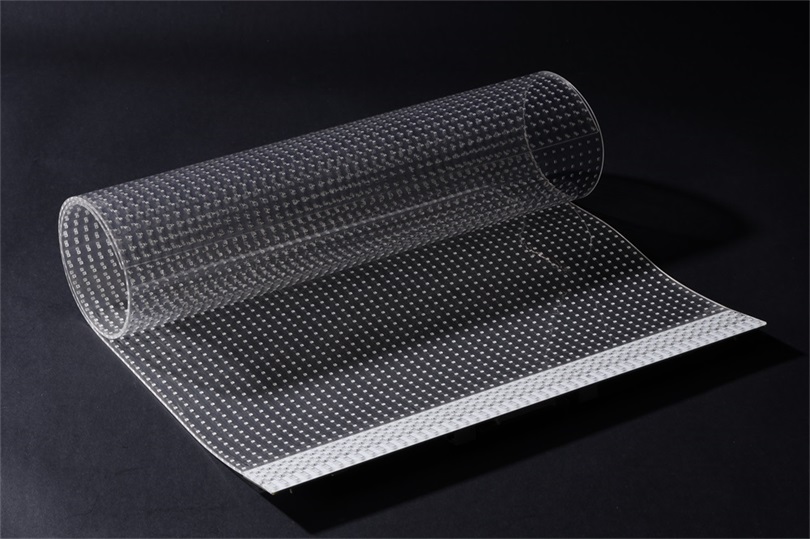

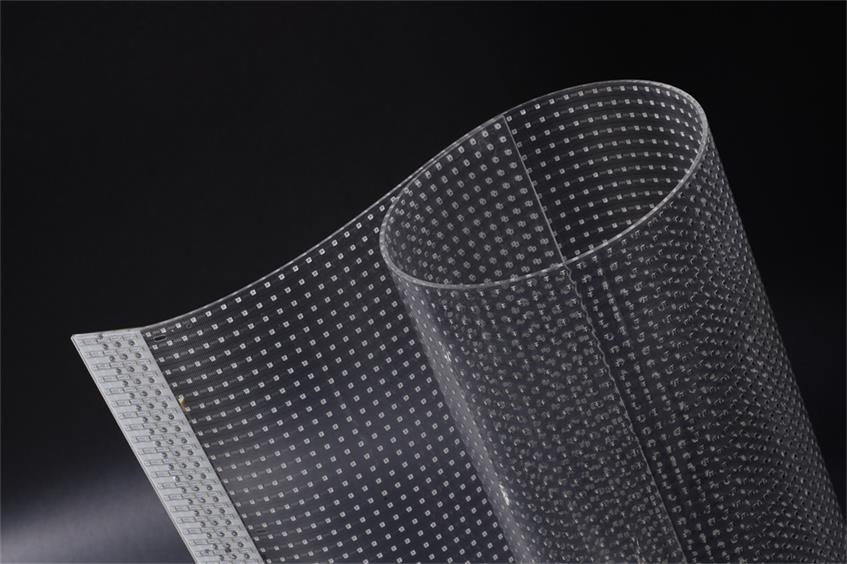

We specialize in selling Transparent Led Film Screen. Transparent displays are widely used in digital signage commercial display, transportation, construction, home and other scenarios. Shopping Mall Signs, suitable for shopping malls, can be equipped with transparent OLED screens on external windows to display a wide panorama and save space occupied by TVs, monitors, etc., and the product has multiple uses such as video conferencing, display, and entertainment. We also have different sizes of film screens on sale, from Transparent Led Film Screen P6 to Transparent Led Film Screen P20, etc. Interested welcome to inquire.
